MPEX-J106

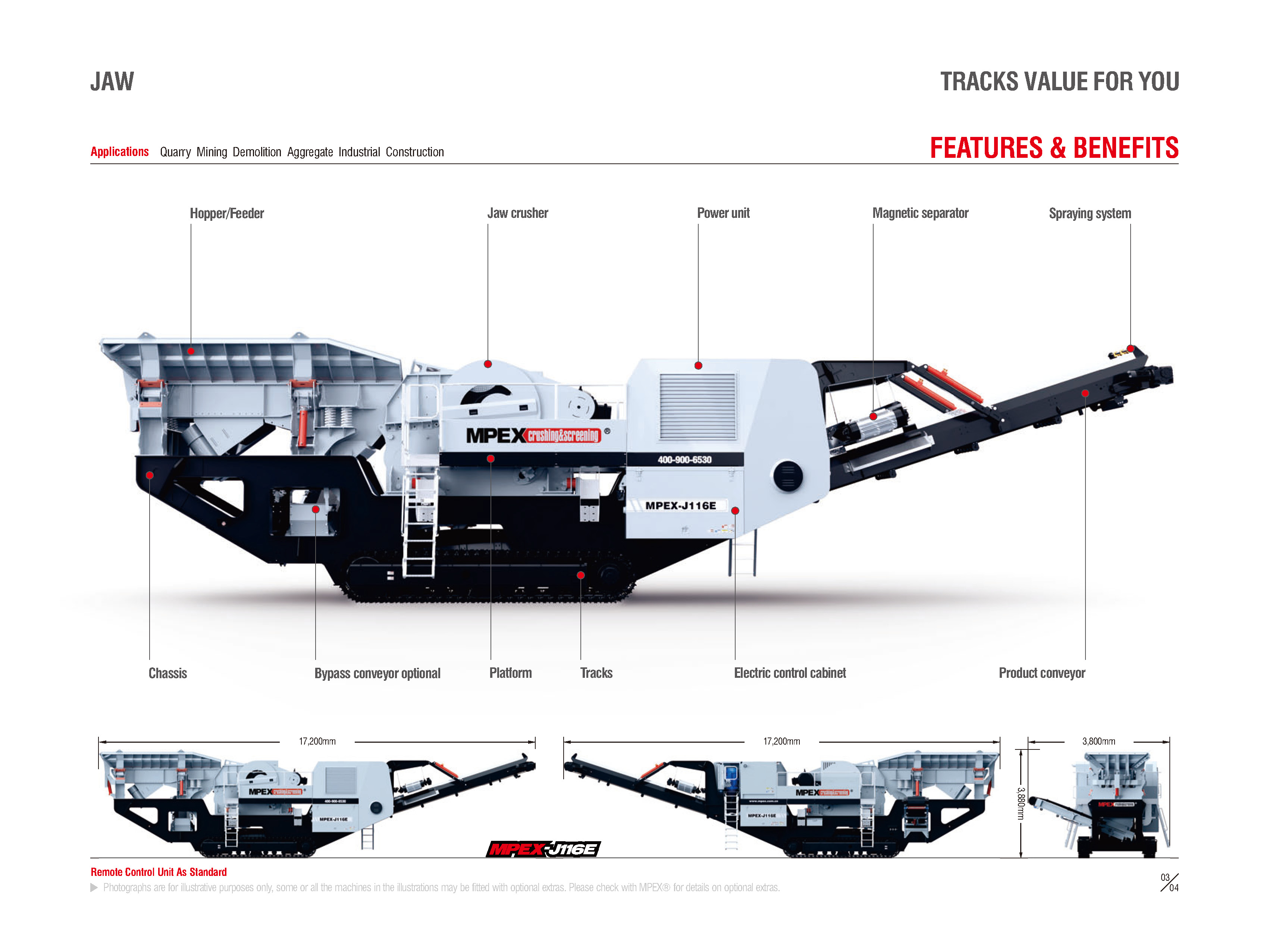

Mobile Jaw Crushers

The MPEX ? tracked jaw crushers are designed to meet the toughest demands of primary crushing applications in the demolition, recycling, quarrying and mining. The aggressive crushing action and design of jaw chamber perfected gives improved material flow and high material reductions ratios when crushing even the hardest of materials with impressive power, reliability and proven performance.

● Magnet, Overband magnetic separator height adjustable

● Dust Suppression System, Water/Foaming spray system fitted to the forward product conveyor and jaw opening

● Side Discharge Conveyor, Folding bypass/fines conveyor to increase material flow

資料下載

產品特點產品應用產品參數


MODEL	KJ-106	KJ-106E	KJ-110	KJ-110E	KJ-116	KJ-116E
Feeding capacity (t/h)	500	500	600	600	600	600
Feeding height (mm)	4,150	4,200	4,150	4,150	4,150	4,150
Hopper volume (m3)	4	5	5	5	5	5
Jaw crusher modle	C106	C106	C116	C116	C116	C116
Crusher inlet (L*W) (mm)	1,060*700	1,060*700	1,150*760	1,150*760	1,150*760	1,150*760
Max feede size (mm)	560	560	610	610	610	610
Gap width adjustment range (mm)	70-200	70-200	70-200	70-200	70-200	70-200
Crusher weight (kg)	14,500	14,500	21,000	21,000	21,000	21,000
Engine power (kW)	97	200	97	250	97	250
Total weight (kg)	47,000	50,000	53,000	55,000	53,000	55,000
Transport size (mm) (LWH)	15,5003,7003,800	17,5003,7003,800	17,2003,8003,880	17,2003,8003,880	17,2003,8003,880	17,2003,8003,880
Crusher power（kw）	110	110	132	132	132	132
